Laser Stone Cutting Machine HLSQ-625

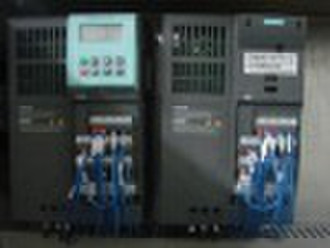

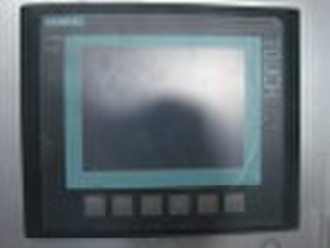

SIMENS CONTROL SYSTEM.Bridge structure with cross beam 5200 mm.Apply linear guild way in Y, Z axis, apply slide way in X axis.Work table can tilt 0-85 degree for loading and unloading the slabs.Cutting head can tilt 0-90 degree manual; rotate 0-360 degree automatic.LCD monitor with English program data.With laser.With 2 control system, manual and automatic.The machine is made of cast iron.All the electronic equipped by SIMENS ( French based company).The seller will provide free spare part for back up for buyer since machine shipment.TECHNICAL DATA: Name UnitHLSQ-625Maximum diameter of saw blademmΦ400-Φ625Dimensions of working platformmm3200×1750Maximum length of rip cuttingmm3200Cutting thicknessmm0-180Maximum lifting travel of cuttermm250Power of main motorkw11/15Power of tool slide reciprocating motorkw3Power of crossbeam shifting motorkw2.2Power of turn over lifting and oil pump motorkw2.2 Power of head rotaion motorkw 1.5 Power of elevator motorkw1.5Gross Powerkw21.4/ 25.4Water Consumptionm3/h2Water PressureMpa>0.2Gross Weightkg6500 Machine Dimensionsmm5800×3400×3100
