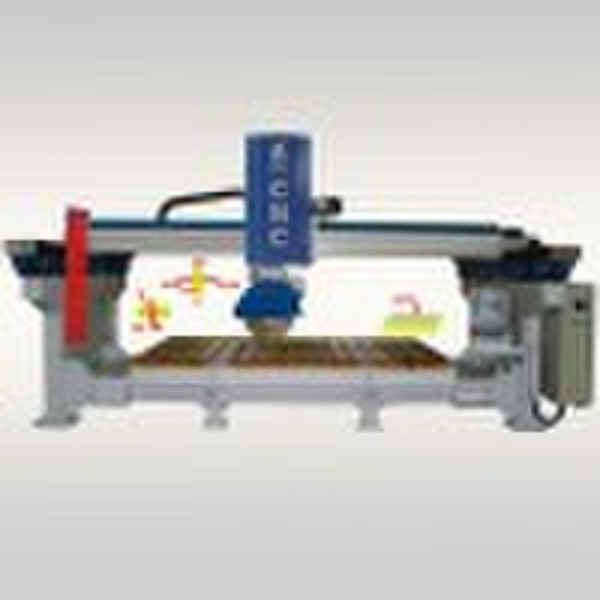

CNC Bridge Stone Cutting Machine

1.Controlled by CNC programme. 2. Equipped with a laser illumination system which makes the disc adjustment easier. 3.Cutting dimensions are set by terminal input which is microcomputer controlled. 4.The worktable can turn up to an angle of 85degree. 5. The cutting head could work under 45 degree. 6.The main electrical elements and componets of the machine are all of imported good-quality materials. TECHNICAL DATA:Name UnitCN-625Maximum Diameter of Saw blademmφ400-φ625Dimensions of Working Platformmm3200×1750Maximum Length of Rip Cuttingmm3200Cutting Thicknessmm0-180Maximum lifting travel of cuttermm250Power of main motorkw11/15Power of tool slide reciprocating motorkw3Power of crossbeam shifting motorkw1.5Power of head rotation motorkw2.2Power of elevator motorkw 1.5Gross powerkw19.2/23.2Water consumptionm3/h2water presureMpa>0.2Gross weightkg5500 Dimensionsmm5800×3550×3100
